LB – Gate lock with handle

Used for side-hung gate that should be operated from both sides and be lockable from the outside.

With the locking knob in the vertical position, the bolt is self-locking when closed.

Unlocking is done from the outside with a key and from the inside by setting the locking knob to a horizontal position.

Article number:

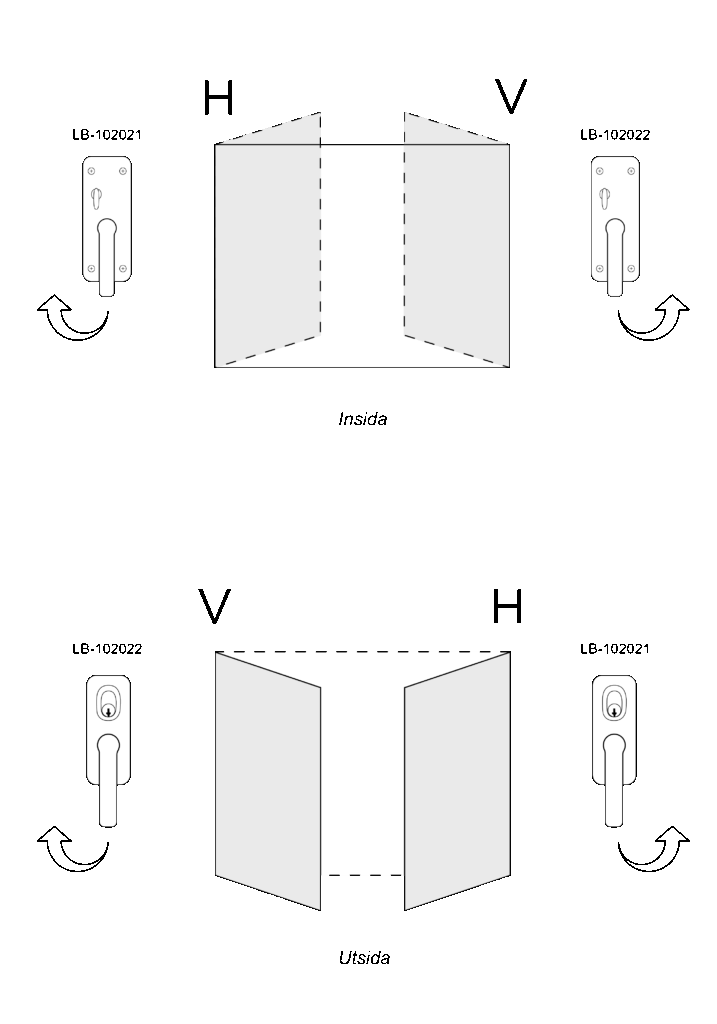

LB-102021 for right-hung door
LB-102022 for left-hung door

Features

• Two-point closing where the handle has marked stop positions in both the open and closed positions.
• The latch is lockable with a standard oval cylinder.
• The stroke length is 28 mm for each control rod.
• For control bars, 13 x 13 mm square.

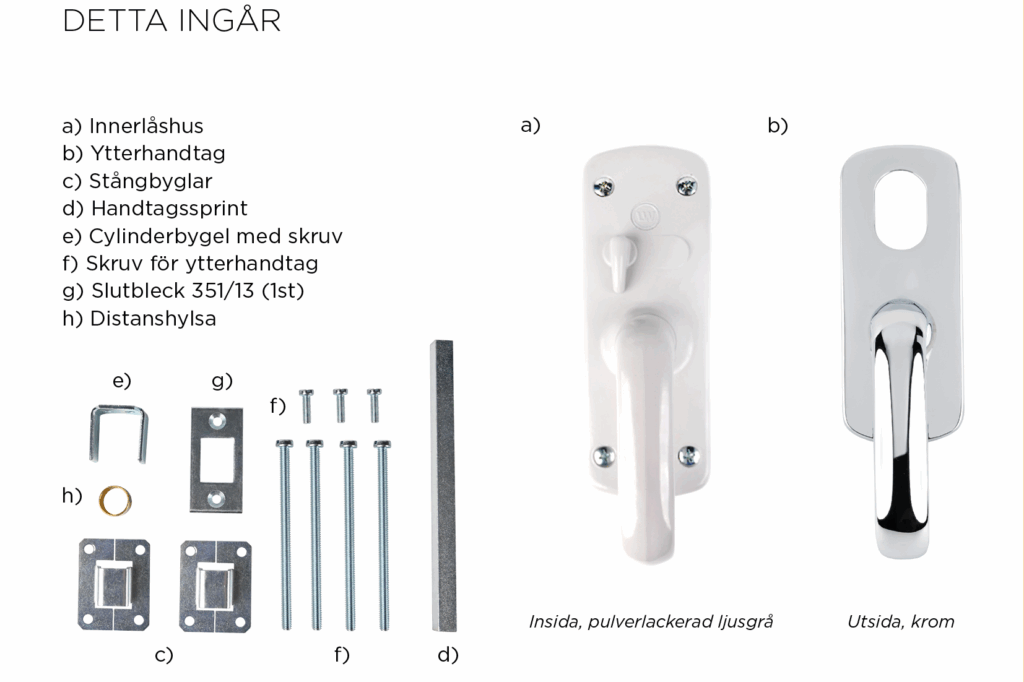

• NOTE: Lock rod and cylinder are purchased separately.
